Long Range
Bluetooh

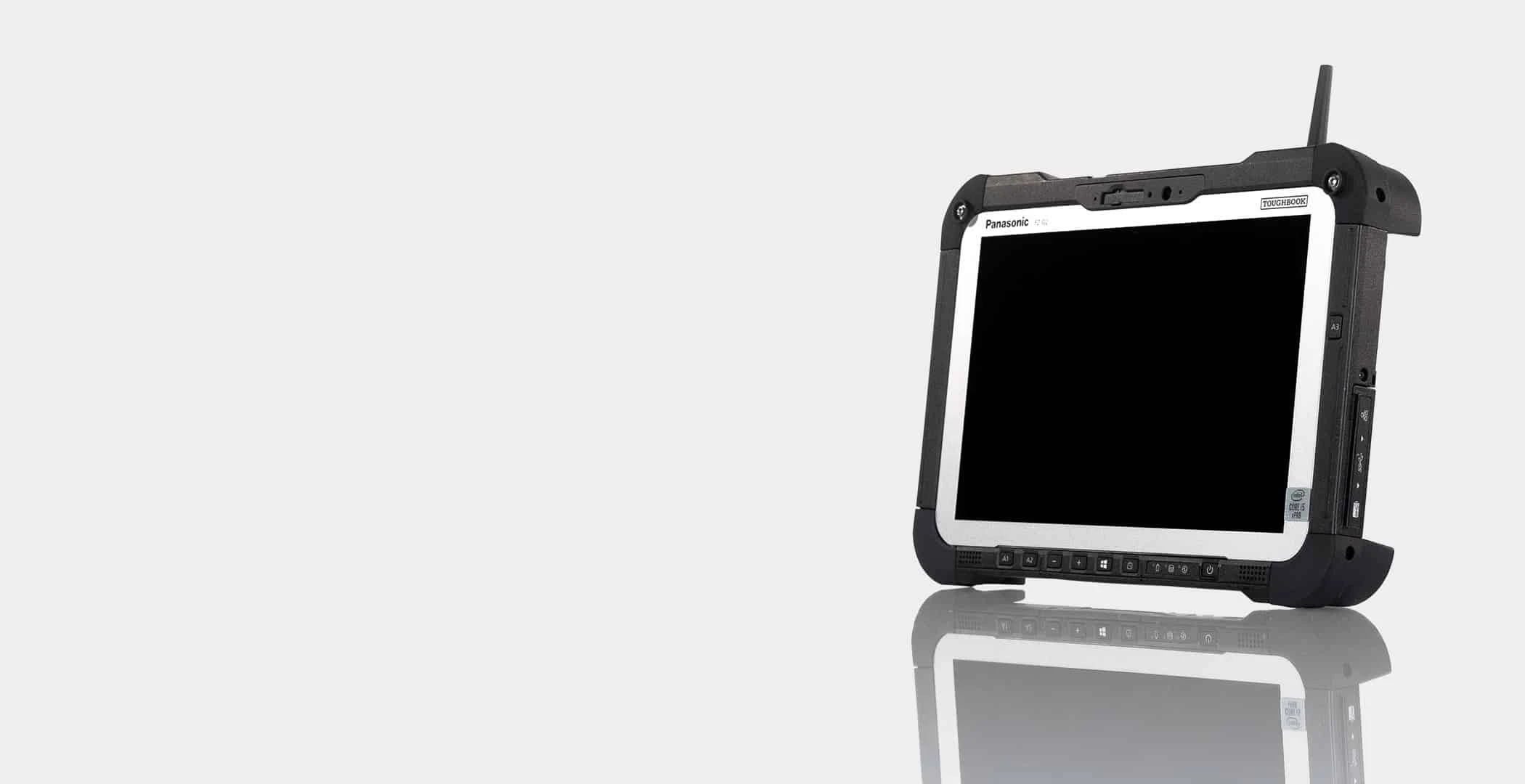

The LRBT RADIO module is directly integrated on the
TOUGHBOOK G2 and allows a straight wireless
connection between the total station and the
tablet via long range Bluetooth. The solution is
also suitable for use at very long measuring distances.
Facts
Results from range tests:
- 850 m directed to the total station
- 450 m away from the total station
- Tested tightness by PWA rain simulator
Fall protection by:
- GIANT CORNER GUARDS and hand strap
- Antenna connector is protected by rear positioning on TOUGHBOOK G2 (protrudes if required)
Fully integrated via upper optional USB interface
Performance
Details of the built-in electronics:
- Compatible e.g. with LEICA Radio Handle RH17 & RH18
- Frequency: 2.4 – 2.483 GHz
- Power level: +13 dBm
- Consumption: 44 mA @ 3 V
- Aerial terminal: RP-SMA
Datasheets / PDF
