High precision
at a fair price

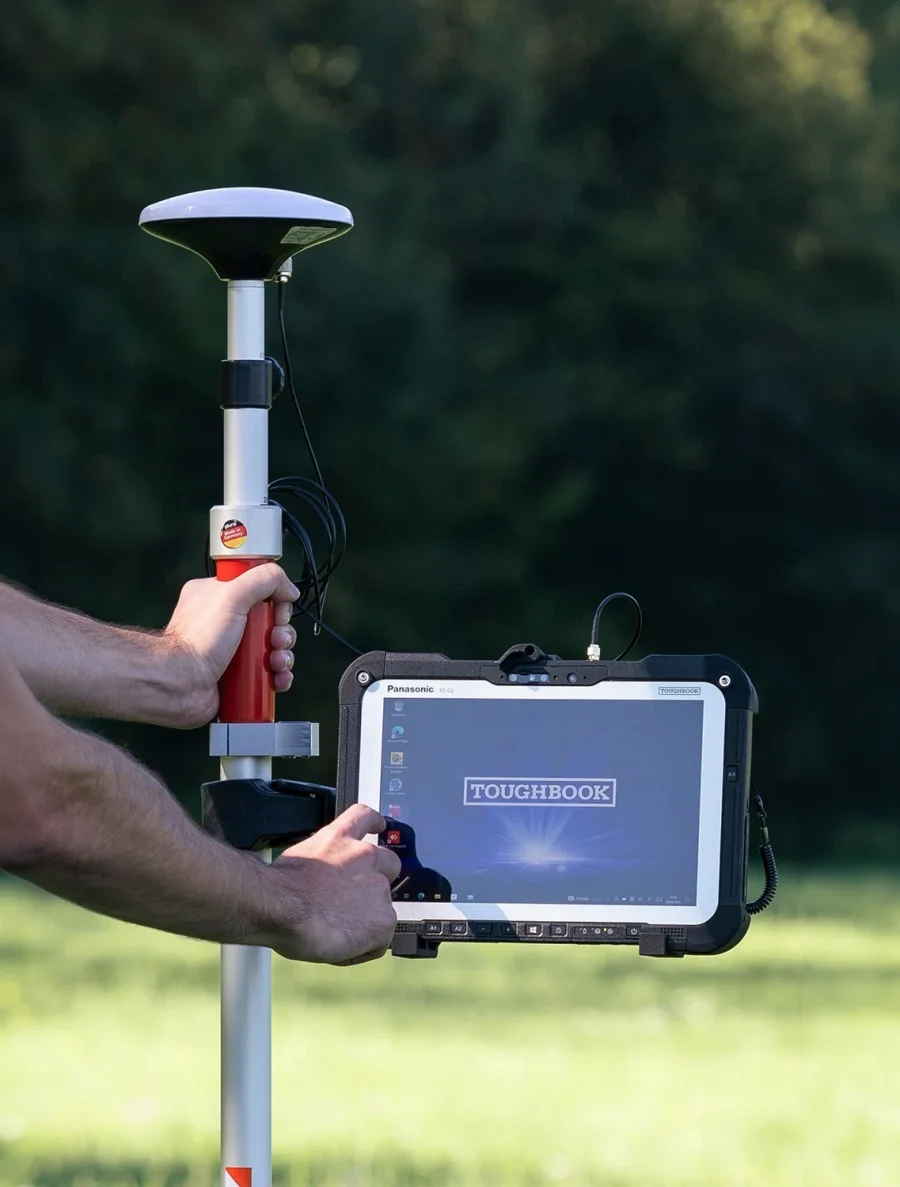

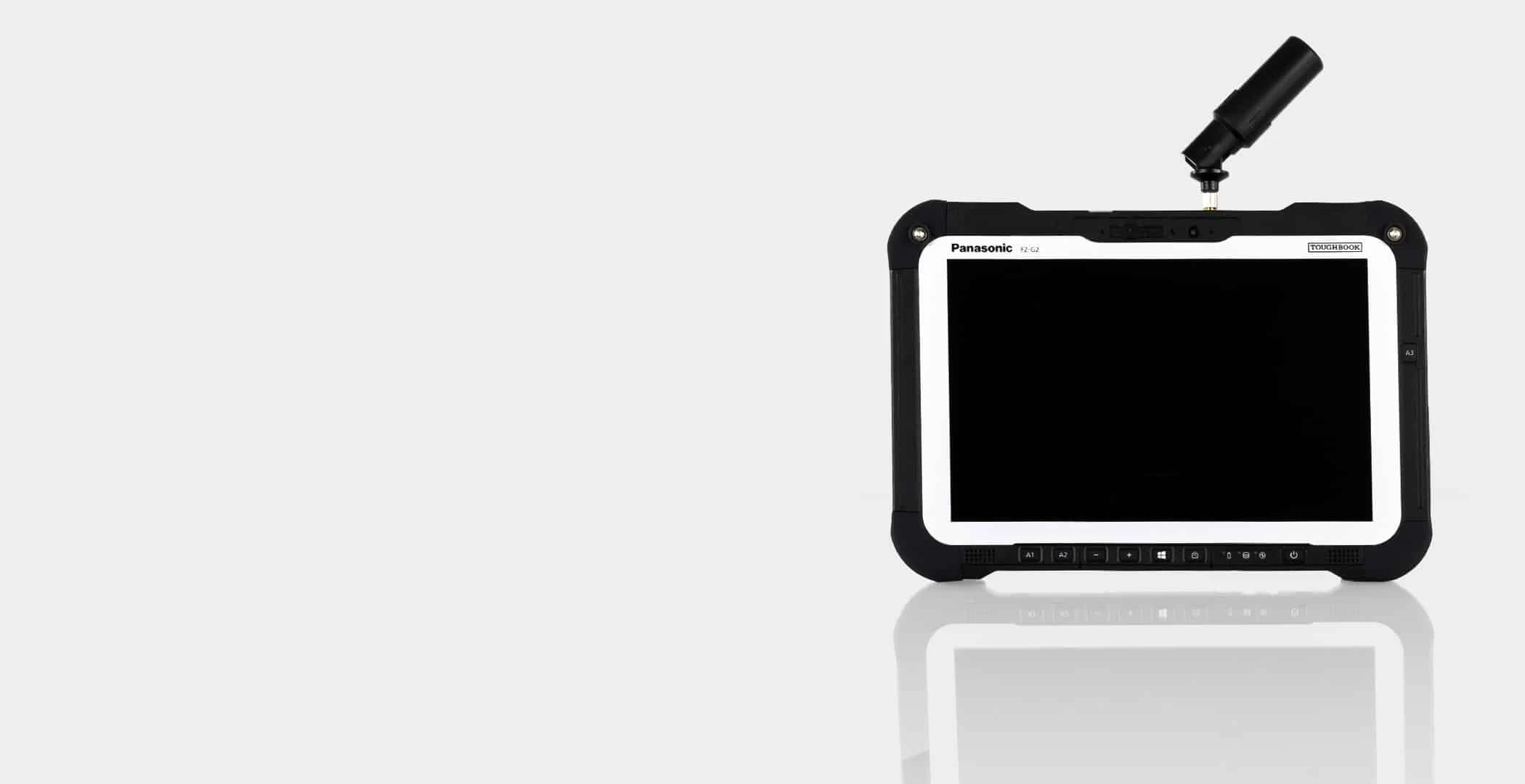

The fully integrated high precision GNSS receiver
enables the TOUGHBOOK G2 to use our RTK GNSS
solution for satellite positioning with submeter accuracy.
Facts
- Supports all major GNSS systems:
GPS, GLONASS, Galileo, Beidou and QZSS - Data export: NMEA
- Fast cold start initialisation time:
25 s – 30 s (depending on satellite usage) - Initialisation time for repositioning: 2 s
- No connection via Bluetooth etc. required
- IP65 protection is maintained after installation of the antenna, thanks to a custom-fit sealing system.
- Your TOUGHBOOK G2‘s warranty remains unaffected by the modification.

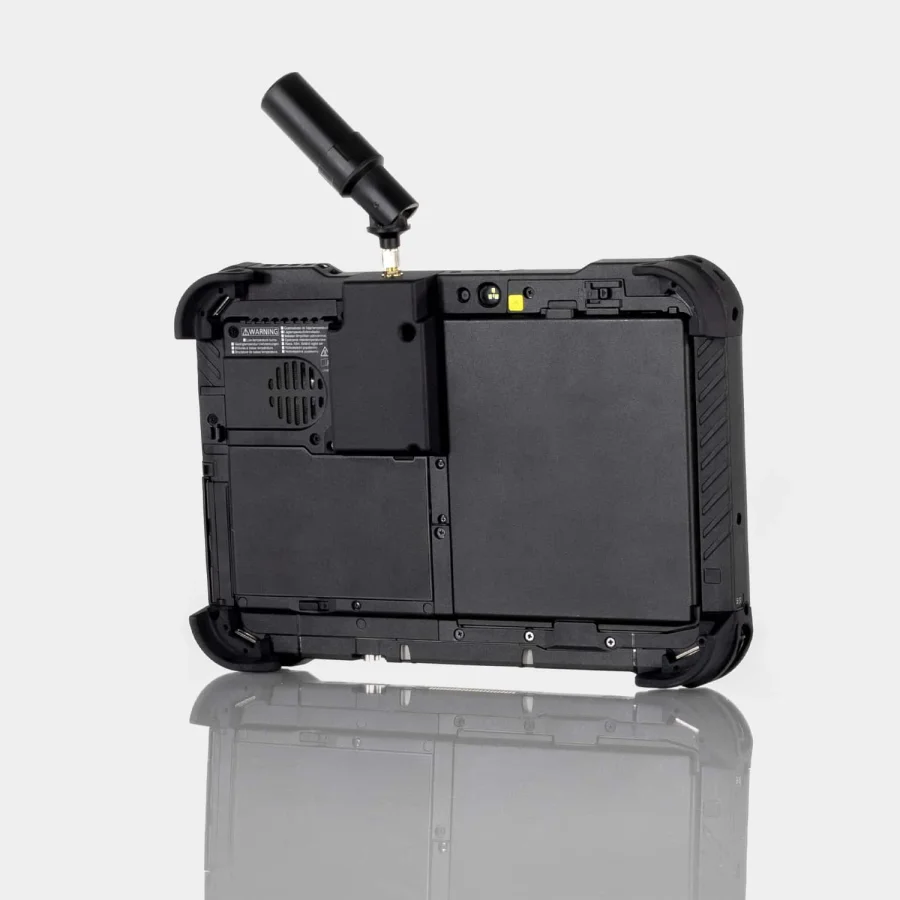

- Rotatable and bendable antenna, an overhead antenna is available as an option.
- Windows 11 Pro
Performance
Horizontal positioning accuracy:
- RTK 0.01 m + 1 ppm CEP
- PVT 1.5 m CEP
- SBAS 1.0 m CEP
- SPARTN <0.06 m CEP (GPS+GLO+GAL)
- CLAS 0.04 m CEP (GPS+GLO+GAL)
Vertical positioning accuracy:
- RTK 0.01 m + 1 ppm R50
- PVT 2.0 m R50
- SBAS 1.5 m R50
- SPARTN <0.12 m R50
- CLAS 0.08 m R50
Dynamic price accuracy:
- 0.3 deg
Sensitivity:
- Tracking and navigation (-167 dBm)
- Signal recovery (-160 dBm)
Recognition time:
- RTK < 10 s
