U-BLOX module
retrofittable
For more precise location measurements:

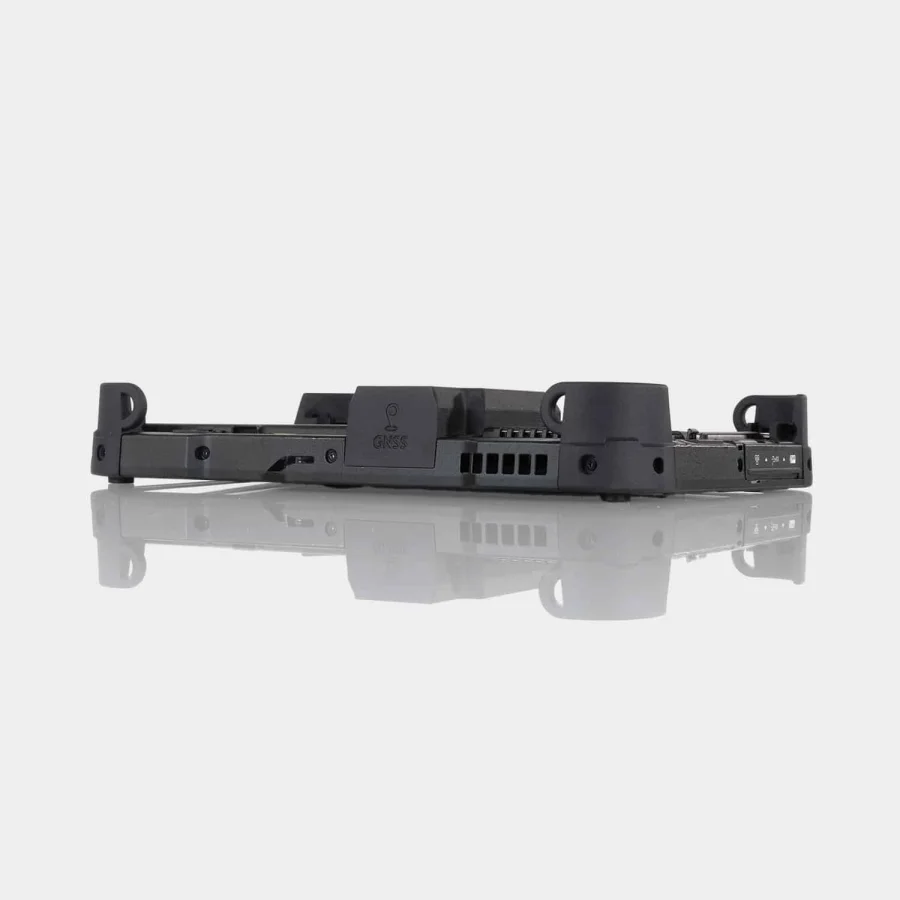

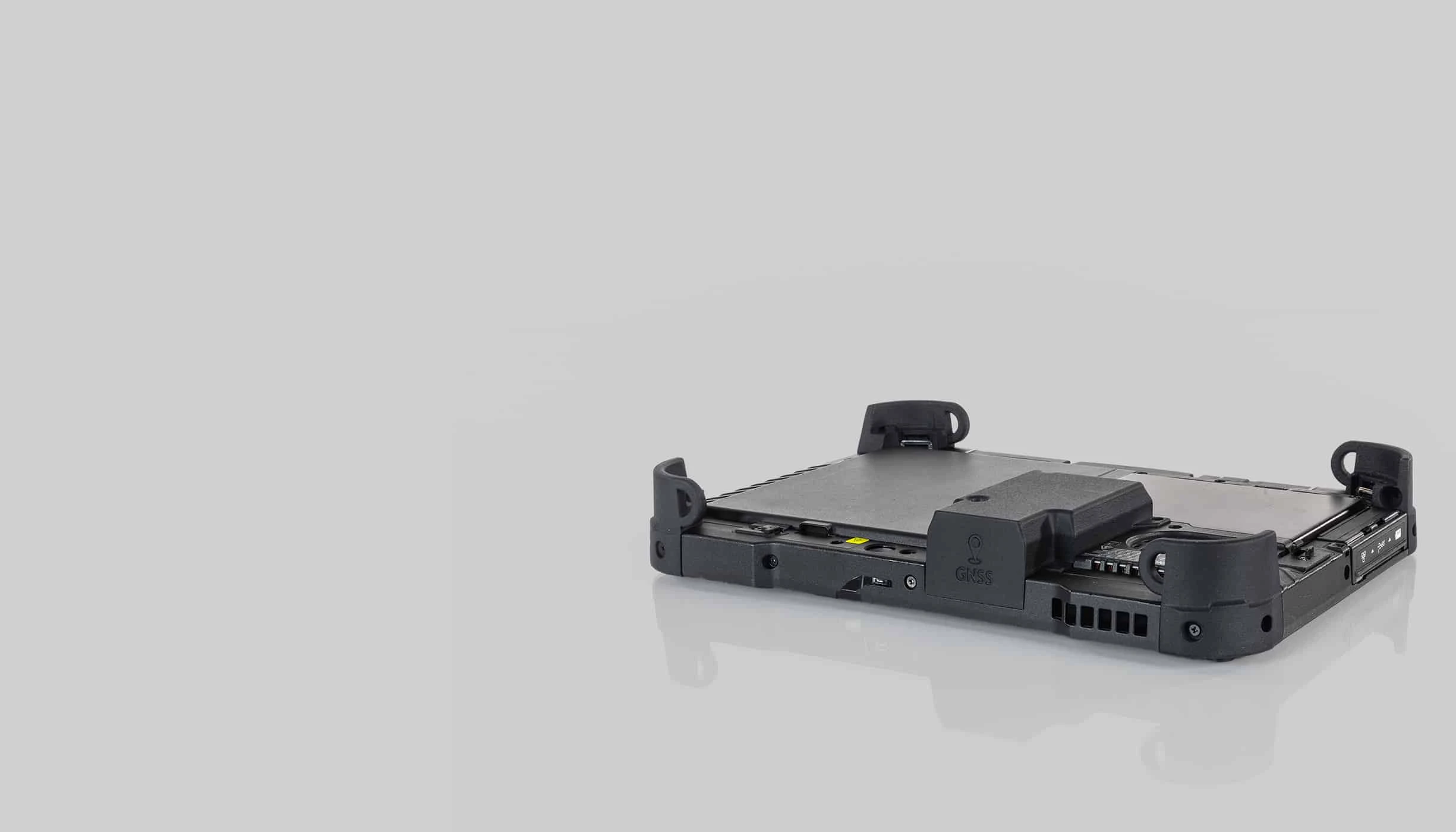

the dedicated GPS solution for the TOUGHBOOK G2.

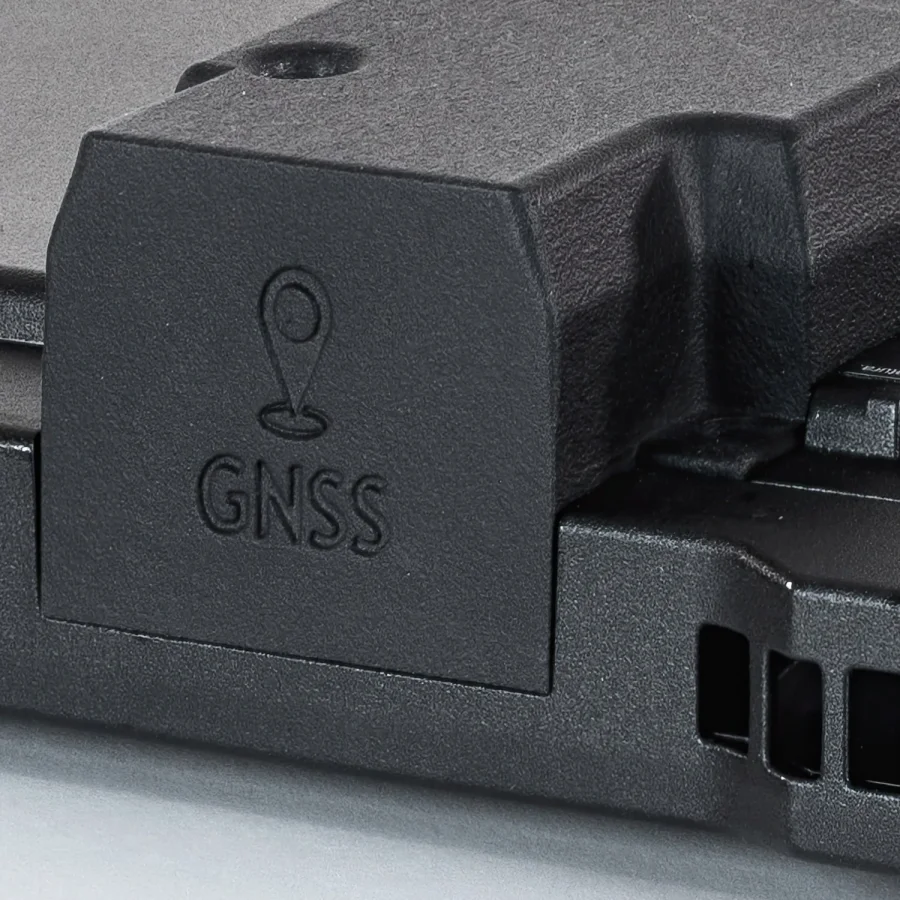

Can be retrofitted to the top optional slot.
Facts
- Original configurable GPS module:
U-BLOX 8 UBX-M8030-KT - Tested tightness by PWA’s own rain simulator
- Measurement precision identical to original module:
less than 2.5 m (2D)
Performance
- Processes signals from up to 72 satellites simultaneously
- Supports AssistNow online/offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
- Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
- USB specification 2.0
- Auto Baud Rate up to 115200 bps
- Update Rate: single GNSS: 18 Hz (e.g. GPS solo) / multiple GNSS: 10 Hz (e.g. GPS + GLONASS)
- Sensitivity max. -167 dBm
- Cold start within approx. 26 seconds
- Hot start within approx. 1 second
