Fully integrated
trimble module

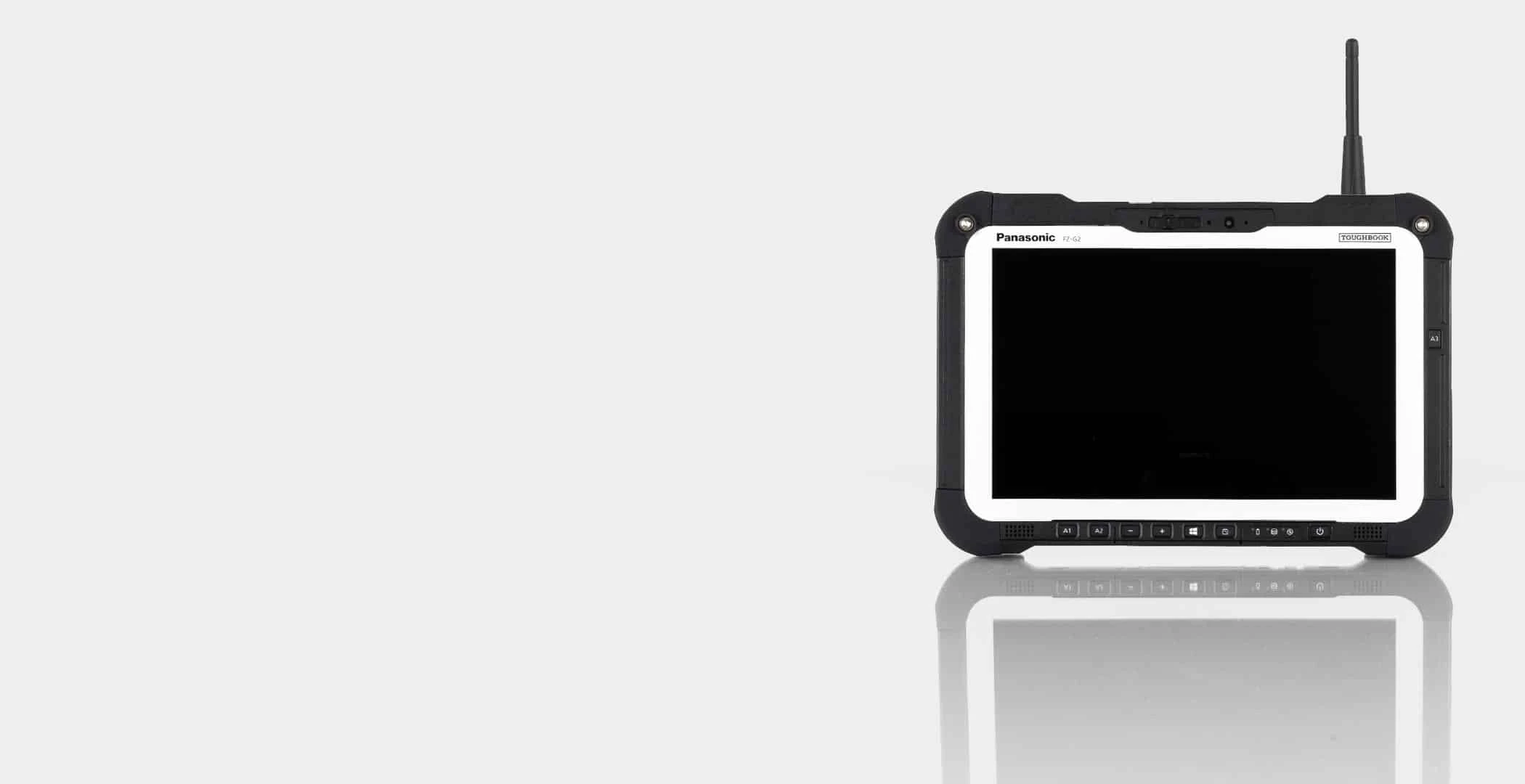

The TRIMBLE module is installed directly on the
TOUGHBOOK G2 and enables a direct wireless
connection between the TRIMBLE total station
and the tablet - even at very high measuring
distances. This simplifies the daily workflow,
for GIS geo-surveying, for example.
Fact
Results from range tests:
- 500m facing the total station
- 400m away from the total station
- Tested tightness by PWA rain simulator
Fall protection through:

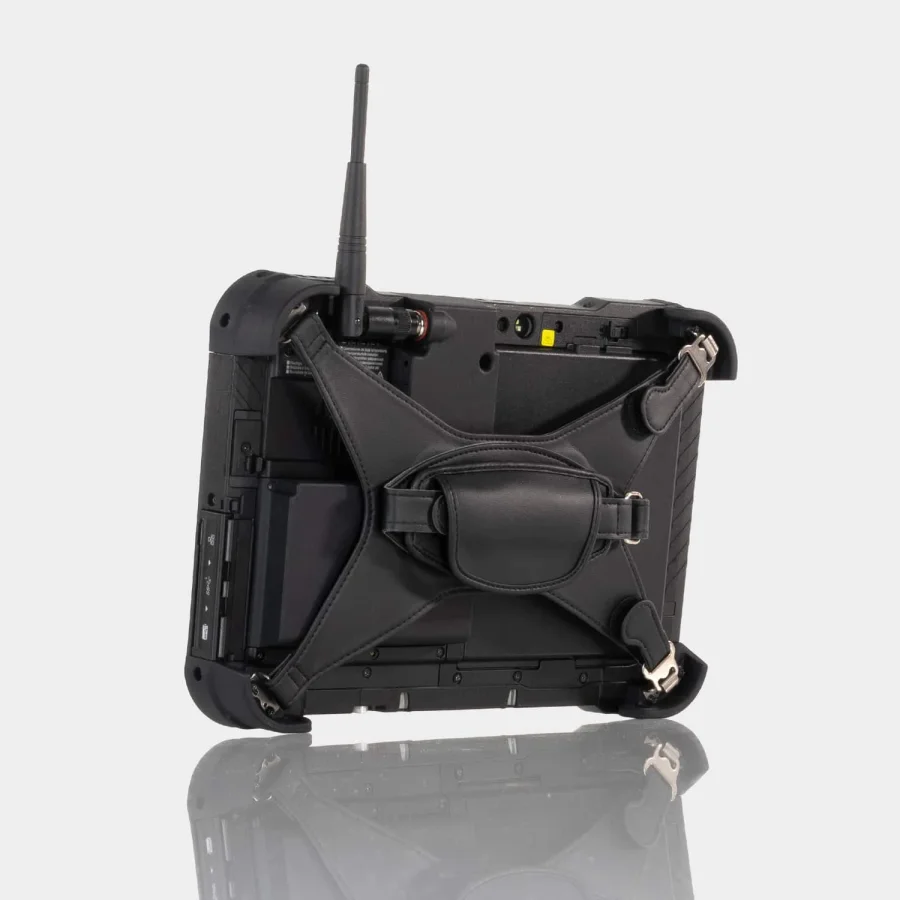

- GIANT CORNER GUARDS and hand strap

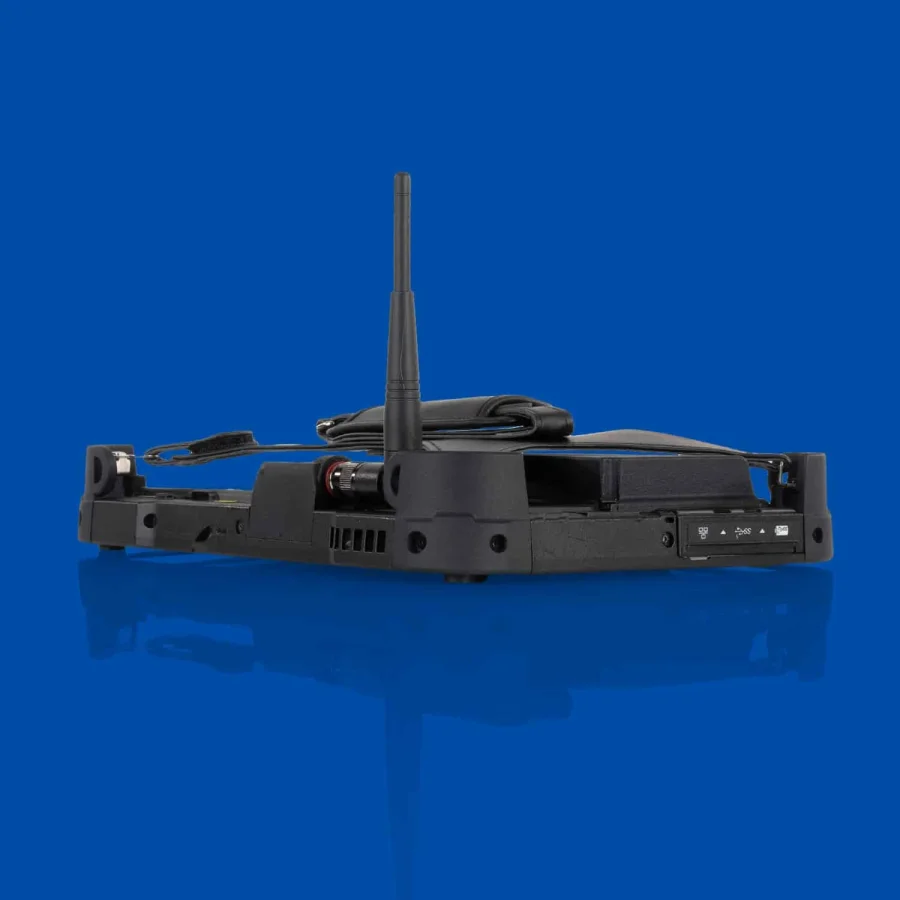

- Antenna plug is protected due to rear positioning on the TOUGHBOOK G2. The antenna protrudes if required.
- Fully integrated via top optional USB interface
Performance
Details of the built-in electronics:
- Compatible with TRIMBLE total station
- Frequency: 2.4 – 2.483 GHz
- Power level: +10 / +18 dBm
- Consumption: 40 mA @ 3.3 V
- Aerial terminal: RP-TNC
